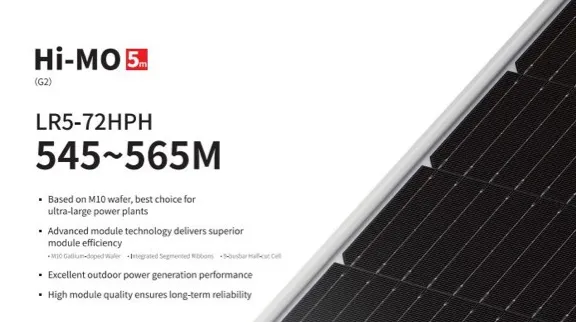

LONGi Solar Module: LR5-72HPH-545~565M

The Hi-MO 5m (G2) LR5-72HPH 545~565M solar module is designed for optimal performance in ultra-large power plants, offering a range of advanced features:

Key Features

• M10 Wafer Technology: Utilizing the M10 wafer, this module is the best choice for large-scale solar power plants.
• Superior Efficiency: Advanced module technology ensures high efficiency levels:
  • M10 Gallium-doped Wafer for enhanced performance.
  • Integrated Segmented Ribbons for improved electrical connections.
  • 9-busbar Half-cut Cell design for reduced electrical losses.
• Outstanding Outdoor Performance: The module’s high quality guarantees excellent power generation and long-term reliability in outdoor conditions.

Component Specifications

• Max Module Efficiency: 21.9%
• Power Tolerance: 0~3%
• First Year Power Degradation: <2%
• Year 2-25 Power Degradation: 0.55%
• Half-Cell Design: Reduces operating temperature, enhancing performance and longevity.

Mechanical Parameters

• Cell Orientation: 144 (6×24)
• Junction Box: IP68 rated, with three diodes.
• Output Cable: 4mm², customizable length from +400 to -200mm/±1400mm.
• Glass: 3.2mm coated tempered single glass for durability.
• Frame: Anodized aluminum alloy for strength and corrosion resistance.
• Weight: 27.5kg
• Dimension: 2278×1134×35mm
• Packaging: 31pcs per pallet/155pcs per 20’GP /620pcs per 40’ HC

Operating Parameters

• Operational Temperature: -40 ℃ to +85 ℃
• Power Output Tolerance: 0 ~ 3%
• Maximum System Voltage: DC1500V (IEC/UL)
• Maximum Series Fuse Rating: 25A
• Nominal Operating Cell Temperature: 45±2℃
• Protection Class: Class II
• Fire Rating: UL type 1 or 2, IEC Class C

Mechanical Loading

• Front Side Maximum Static Loading: 5400Pa
• Rear Side Maximum Static Loading: 2400Pa
• Hailstone Test: Withstands 25mm hailstones at 23m/s

Temperature Ratings (STC)

• Temperature Coefficient of Isc: +0.050%/℃
• Temperature Coefficient of Voc: -0.265%/℃
• Temperature Coefficient of Pmax: -0.340%/℃
